CERTIFICATION DATA:
ETL/cETL/DLC Listed
IP 65 Housing
IK 08
RoHS
FULL CUT OFF
TYPE IV/TYPE V
LIGHTING PATTERNS:
ENERGY DATA:
Electronic LED Driver
>0.9 Power Factor
<20% Total Harmonic Distortion
100-277V 50/60Hz, 347V/60Hz,
480V/60Hz
-35°C Minimum Temperature
50°C Ambient Temperature Rating
Features
Specification
Dimension
Installation & Linking
Notice
Download
-Patent design.
-Easy installation way .
-Uniquely designed rim on housing focusing light beam.
-Aluminum baking varnish with housing and lamp-standard.
-High Brightness with long life.
-High degree of protection.
-FULL CUT OFF.
-TYPE IV/TYPE V:

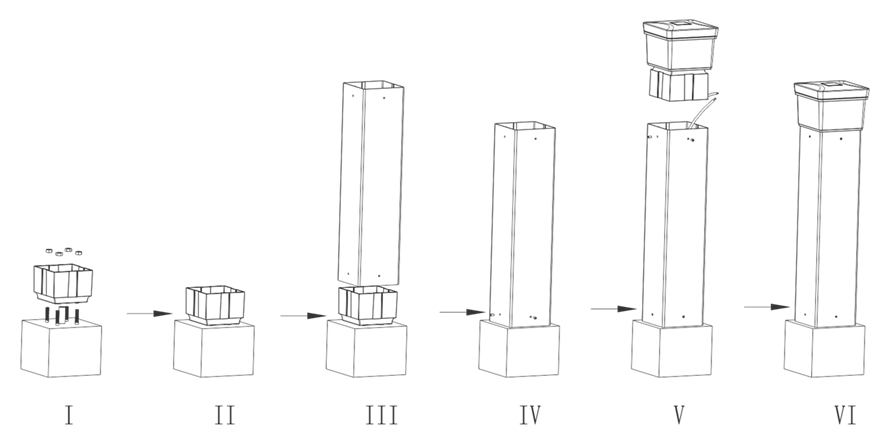

Power must be cut off before installation,fix it on the position of installation holes,connection of the power supply must sealed.
1.Please read the specification first,to make sure the service environment matches the condition in the specification before using.
2.Please confirm the applicable power supply before using.
3.Make sure the switch of product is off before connect to the power supply to prevent electric shock.
4.Operation against rules may damage your property even harm to your personal safety.
5.Preliminarily estimate required quantity of underground lights,then according to the power rating of single flood light to figure out the total power and design power supply plan.
6.Dangerous high voltage,Non-professional are not allowed to maintain the products.
If the exterior flexible cable or wire is damaged,it must exchange by the supplier,its agent or other similar qualified personnel to avoid dangers.
